Model：5x12-80

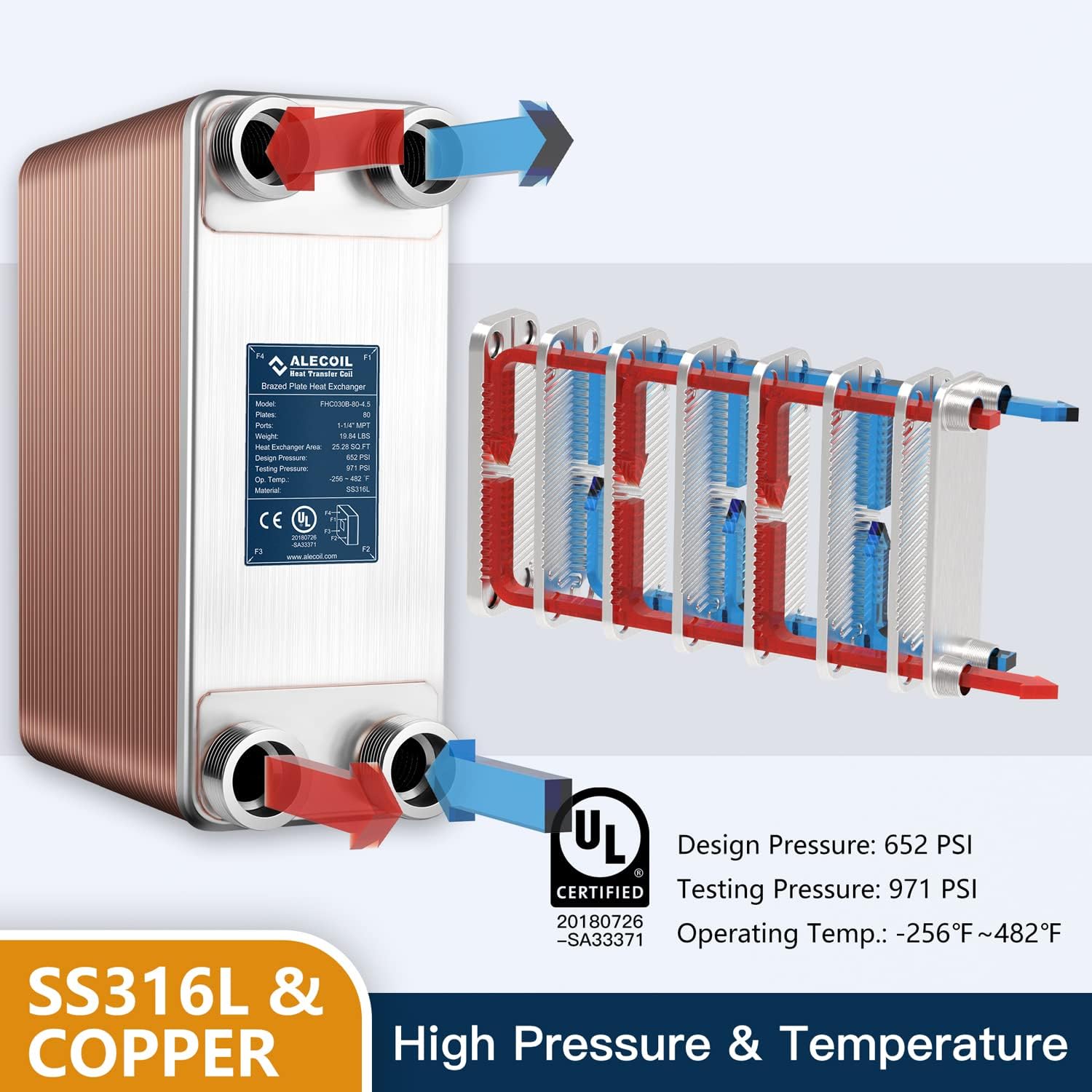

• 【EXCEPTIONAL PERFORMANCE】ALECOIL brazed plate heat exchanger is made of high quality 316L stainless steel and have been brazed together with copper in an oxygen-free furnace. This provides unparalleled strength to support the widest range of high-temperature and high-pressure applications.

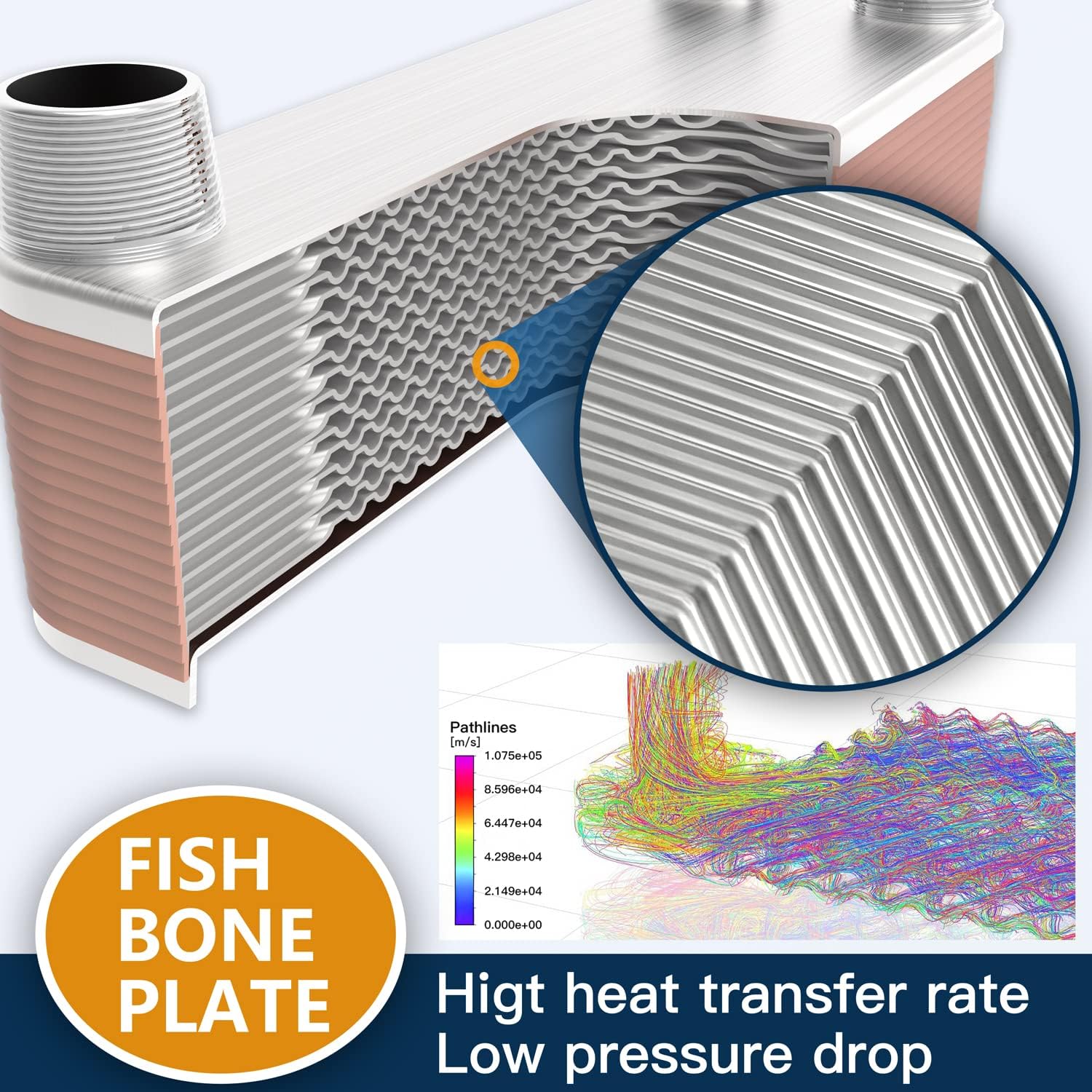

• 【SPECIAL PROCESS】Uses an asymmetric fish bone plate design that creates strong turbulences and moves the two media in opposite directions for superior heat transfer rates and efficiency. Fish bone plate design also reduces the pressure drop on the secondary side, making it possible to use a smaller pump and less electricity, lowering the overall cost of applications.

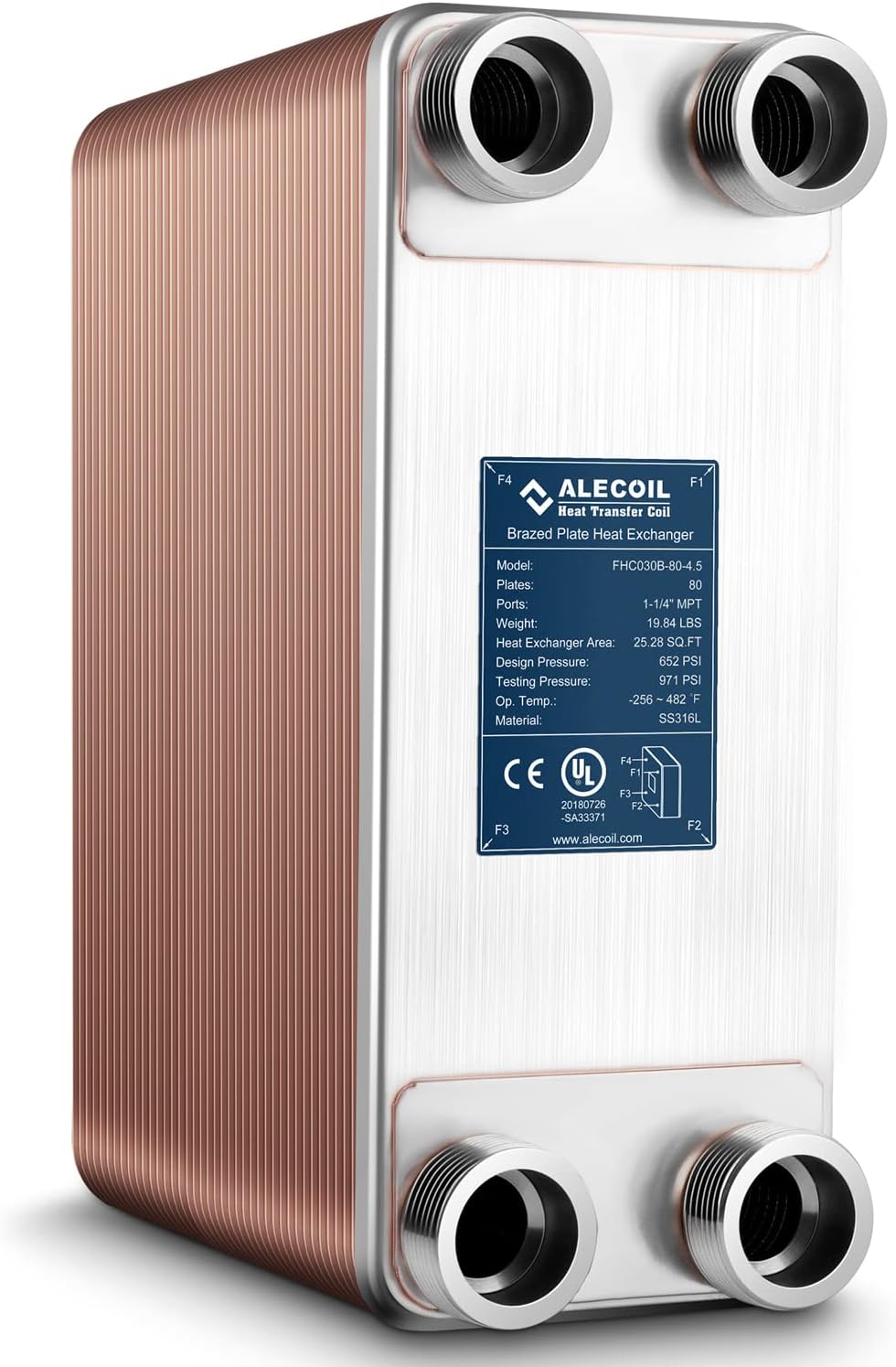

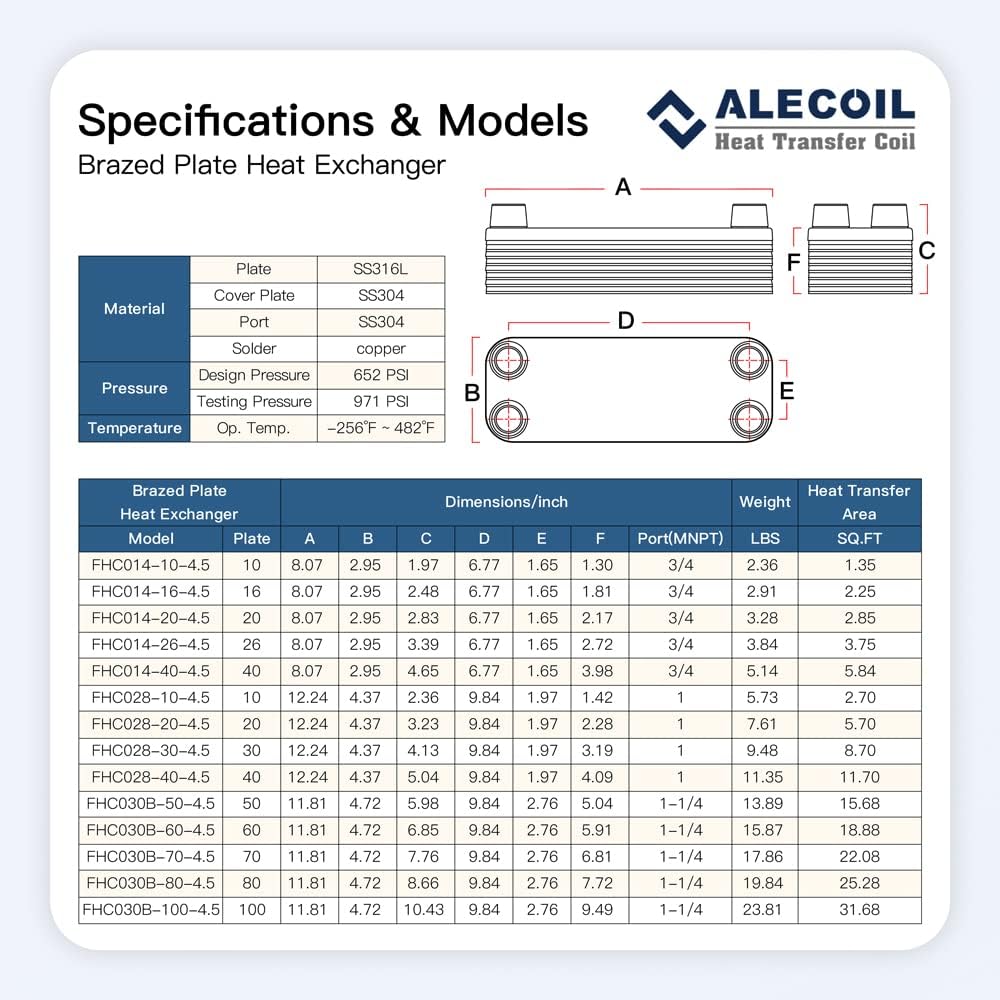

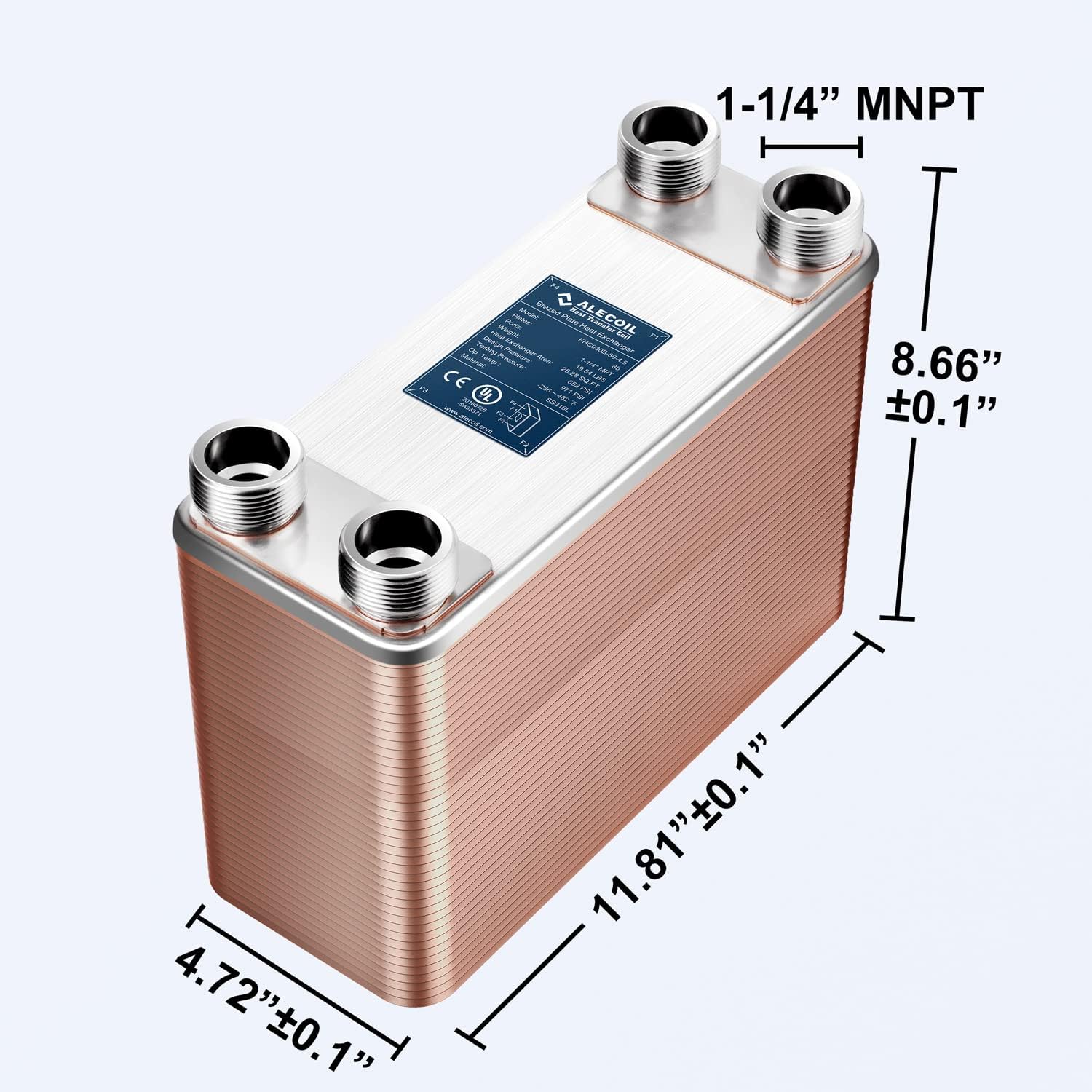

• 【PARAMETER】Model: ‎‎FHC030B-80-4.5, 1,188,000 btu/h capacity, 25.28 sq.ft heat transfer area, 5"x12"-80 plates with 1-1/4" port.

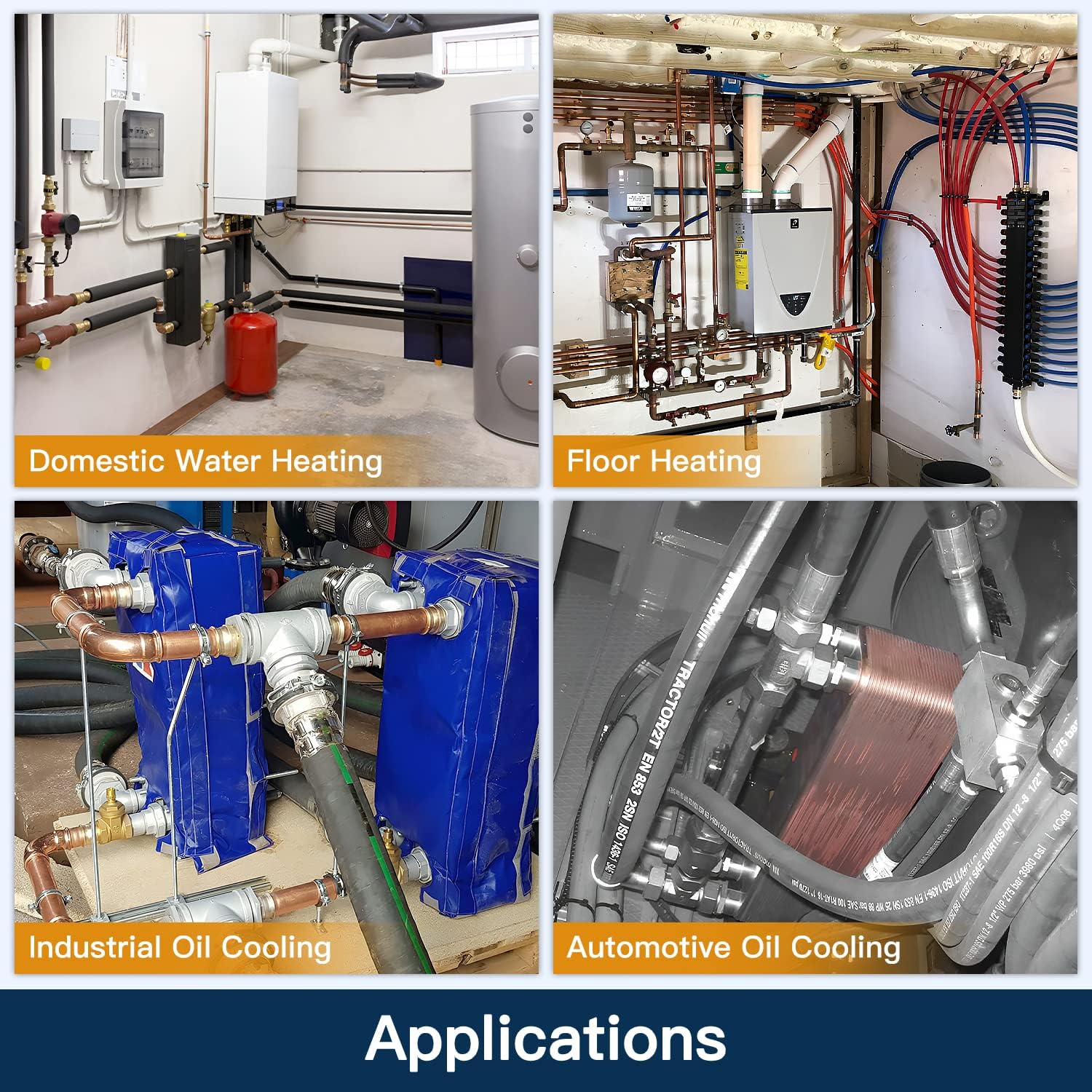

• 【APPLICATION】Provides the highest level of thermal efficiency and durability in a compact lightweight unit, this water heat exchanger is ideal for domestic water heating, floor heating, snow melting, wort chiller, outdoor wood furnaces, solar heating, zone heating systems, industrial oil cooling, residential and light commercial HVAC hydronic systems.
• 【TRUSTED QUALITY】Our brazed plate heat exchanger series have been certificated by UL. ALECOIL also offer a 1-year warranty to cover manufacturing defects.
